1/2inch 1inch 2inch Galvanized Welded Wire Mesh Roll Plastic Coated
1/2inch/1inch/2inch Plastic Coated Galvanized Welded Wire Mesh Roll
Product Description
Electro galvanized welded wire mesh, welded mesh panel, galvanized welded mesh, PVC coated welded mesh, stainless steel welded mesh, SS welded mesh sheet

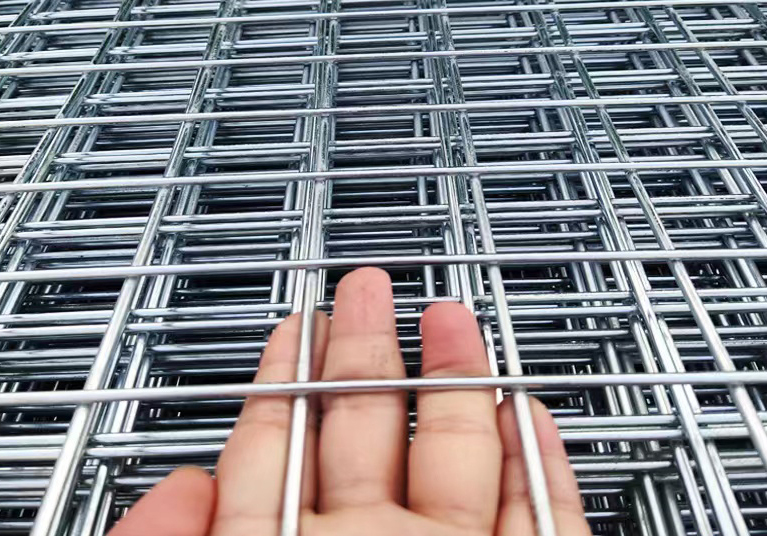

Galvanized Welded Wire Mesh is manufactured from bright drawn mild steel wire and electronically welded at every intersection. Jinshi offers specifications available in stainless steel types 304 and 316 for better corrosion resistance. Galvanised weld mesh provides a flatter finish that is easier to use if not fixing from both sides. It is generally used for external projects or areas with moisture.

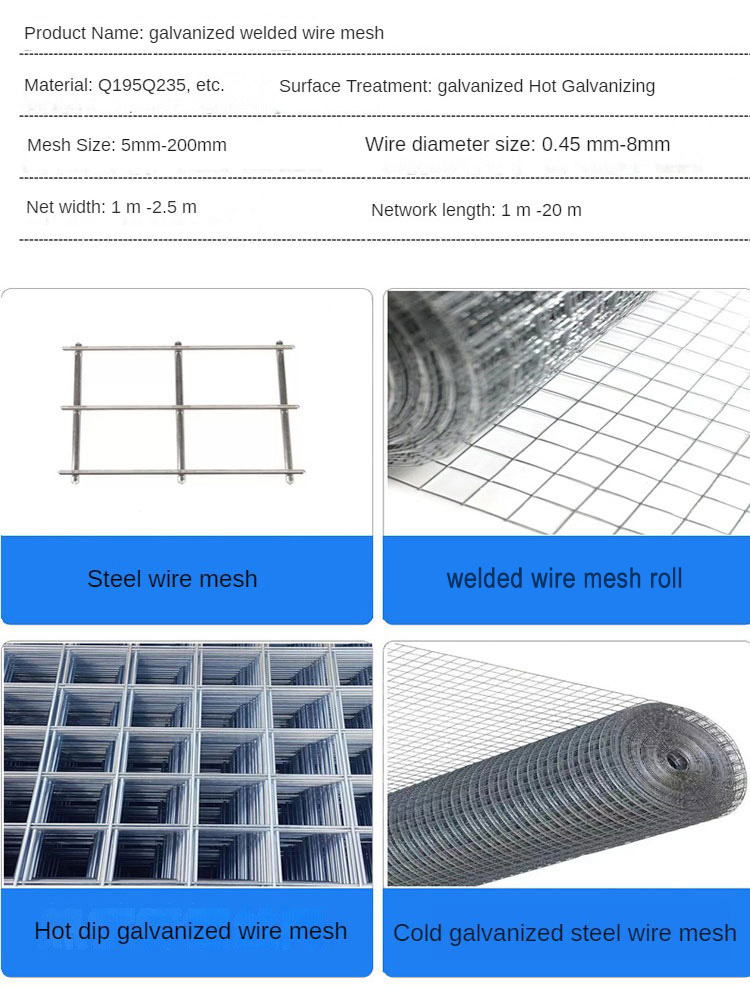

Available Surface Treatments
- PVC coated after welded mesh
- Electro galvanized before welded mesh
- Electro galvanized after welded mesh
- Hot-dipped galvanized before welded mesh
- Hot-dipped galvanized after welded mesh
- Iron/galvanized wire + PVC coated
- Stainless steel 304, 316 wire
Available in 1/2 X 1, 1x1, 1x2 welded wire mesh rolls and panels for pedestrian elevated crossing, 14 gauge rabbit chicken cage floor applications.
Specifications
| Opening |
Wire Diameter BWG |
| 1/4" x 1/4" (6.4 x 6.4mm) | BWG24-22 |
| 3/8" x 3/8" (10.6 x 10.6mm) | BWG22-19 |
| 1/2" x 1/2" (12.7 x 12.7mm) | BWG23-16 |
| 5/8" x 5/8" (16 x 16mm) | BWG21-18 |
| 3/4" x 3/4" (19.1 x 19.1mm) | BWG21-16 |
| 1" x 1/2" (25.4 x 12.7mm) | BWG21-16 |
| 1-1/2" x 1-1/2" (38 x 38mm) | BWG19-14 |
| 1" x 2" (25.4 x 50.8mm) | BWG16-14 |
| 2" x 2" (50.8 x 50.8mm) | BWG15-12 |
| 2" x 4" (50.8 x 101.6mm) | BWG15-12 |
| 4" x 4" (101.6 x 101.6mm) | BWG15-12 |
| 4" x 6" (101.6 x 152.4mm) | BWG15-12 |
| 6" x 6" (152.4 x 152.4mm) | BWG15-12 |
| 6" x 8" (152.4 x 203.2mm) | BWG14-12 |
Roll Dimensions: Width: 0.4m to 2m; Length: 5m, 10m, 30m, etc.
Material: Galvanized, PVC coated, stainless steel.
Note: Special specifications can be made according to customer requirements.
Packing and Shipping
About Our Company
Anping Bingze Wire Mesh Products Co., Ltd. has focused on the production and research and development of stainless steel wire mesh for 25 years. We are a manufacturer integrating production, processing, distribution and wholesale. Our stainless steel wire mesh and stainless steel filters are in a leading position in the industry.
In addition to a large inventory of stainless steel wire mesh, we can produce various special-shaped stainless steel wire mesh and deep-processed products according to customer needs.
Our company operates with "leading technology, winning by quality" as our business philosophy. We employ nearly 20 middle and senior stainless steel mesh technicians with strong research and development capabilities. We operate 80 sets of large-scale CNC and automated mesh production equipment, utilizing advanced production technology and implementing comprehensive quality management.
Stainless Steel Wire Mesh Materials: SUS201, SUS202, SUS302, SUS304, SUS316, SUS304L, SUS316L, SUS310 and many other stainless steel grades.
Production Processes: Weaving, butt welding, stretching, punching. Weaving includes plain weaving and twill weaving.
We maintain a large inventory of stainless steel wire mesh year-round, with meshes ranging from 1 mesh to 2800 mesh, widths from 1-2.5 meters, and conventional lengths of 30 meters. Customization available including tubes, sheets, baskets, etc.
Our stainless steel mesh and filters made of 304, 316 materials maintain good cooperative relationships with domestic large-scale oil fields, coal mines, petroleum, machinery, and chemical industries. We have established trade relations with more than 20 countries including the United States, Japan, Russia, and Australia.
Anping Bingze Wire Mesh Products Co., Ltd. continues to adhere to "Customer First, Honesty First" as our guiding principle, forging ahead with continuous innovation and win-win cooperation.
Shipping and Payment
Frequently Asked Questions
Q1. Are you a manufacturer or trading company?
We are a factory, guaranteeing first-hand competitive pricing and high quality products.
Q2. Are samples acceptable and what is the MOQ?
Yes, we accept custom samples. Please contact our sales team for specific MOQ details as they vary by product.
Q3. Can I get a better price?
We always strive to provide the best prices to our faithful customers.
Q4. What is the lead time?
Sample Order: 3-5 days after full payment. Final Order: 5-20 days after deposit receipt, depending on production progress.
Q5. How can I get samples?
Please confirm size and specifications with our salesperson, then place a sample order for production.
Contact Us
Please contact our sales team for product inquiries, pricing, and technical specifications.
